BSPP or NPT threaded ASME B16.34Threaded SS316, 200 PSI gate valve, 1/2" to 2"
A rising‑stem gate valve for isolation, with BSPP or NPT threaded ends, 1/2" to 2" (DN15 to DN50), in Stainless steel A351 CF8 or CF8M cast. Rated 200 PSI, built to ASME B16.34 and tested to API 598. Graphite packed — isolation duty only, never throttling.
The Threaded SS316, 200 PSI gate valve
Isolation duty, BSPP or NPT threaded ends, built to ASME B16.34.
A rising‑stem gate valve for isolation, with BSPP or NPT threaded ends, in 1/2" to 2" (DN15 to DN50). The body is Stainless steel A351 CF8 or CF8M cast, rated 200 PSI, designed and manufactured to ASME B16.34 with ends to ANSI thread and inspection and testing to API 598.
Fully open, the gate lifts clear of the bore and the valve presents almost no restriction and almost no pressure drop. That is what a gate valve is for. It is not a throttling valve: held part‑open, flow across the partly‑raised gate vibrates it and erodes both gate and seat, and the damage is permanent. To regulate flow, use a globe valve.
- ⚠ Isolation only. Fully open or fully shut — never throttle a gate valve. A throttled gate eventually will not shut off at all.
- ⚠ This is the only gate valve in the range limited to 150 °C. Every other variant reaches 425 °C. The reason is the body: a cast CF8/CF8M valve built to ASME B16.34 rather than a forged one to API 602. Do not specify this for steam or hot oil — use the 800 PSI SS316 or forged steel version.
- 200 PSI against 800 for the other two threaded valves. A quarter of the pressure, and a different design standard. Check the duty before choosing on price.
- The catalogue publishes one dimension table for this valve and the 800 PSI version. We quote it as printed and confirm dimensions on enquiry for the exact rating you are buying.
- Where it does belong: light corrosive duty at ambient — dosing lines, drains, sample points, wash‑down water — where stainless is wanted but pressure and heat are modest.
- Tested to 2.1 MPa shell and 1.6 MPa seal, with gas tightness at 0.6 MPa. Proof tests, not working pressures. The figures.

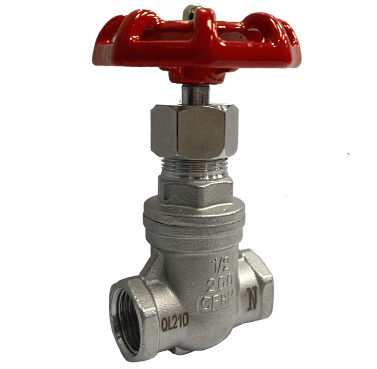

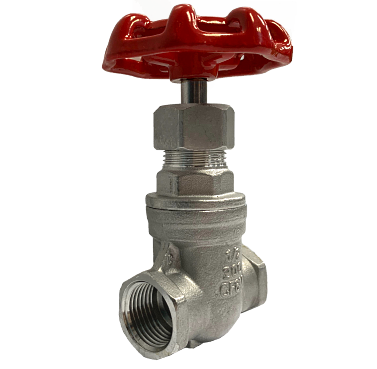

Three angles on the same valve. All photographs of the stocked item, not renders.
Specification
Everything that goes on a purchase order.
| Size range | 1/2" to 2" (DN15 to DN50) |
| End type | BSPP or NPT threaded — to ANSI thread |
| Body material | Stainless steel A351 CF8 or CF8M cast |
| Working pressure | 200 PSI |
| Maximum working temperature | −29 °C to 150 °C |
| Design and manufacture | ASME B16.34 |
| Inspection and test | API 598 |
| Shell or body test | 2.1 MPa |
| Seal test | 1.6 MPa |
| Gas tightness test | 0.6 MPa |
| Stem | Rising stem, handwheel operated, multi‑turn |
| Packing | Graphite |
| Duty | Isolation only — never for throttling. For throttling use globe valves |
| Stock | Held in Malaysia or Singapore |
Bill of materials
All 12 parts, with the manufacturer’s own item numbers.
| No | Part name | Material |
|---|---|---|
| 1 | Body | A351 CF8/CF8M |
| 2 | Wedge | A351 CF8/CF8M |
| 3 | Stem | SS316 |
| 4 | Stem Holder | SS316 |
| 5 | Gasket | PTFE |
| 6 | Bonnet | A351 CF8/CF8M |
| 7 | Packing | PTFE |
| 8 | Ring | SS316 |
| 9 | Cap | A351 CF8/CF8M |
| 10 | Gasket | SS304 |
| 11 | Nut | SS304 |
| 12 | Handwheel | ZL101 |
- The item numbers are the manufacturer’s, taken from the sectional drawing rather than renumbered 1 to 12. We publish them as printed so a spares order matches the drawing.
- Graphite packing is what allows the temperature rating. A gate valve seats metal to metal and packs the stem with graphite — no PTFE in the pressure boundary, which is why this range goes far past a ball valve.
Sizes and dimensions
6 sizes. Dimensions in millimetres.
Letters follow the manufacturer’s drawing. L is the face‑to‑face length and the figure that decides whether the valve drops into your run; H is the height with the stem risen. Where a letter is ambiguous we have left it exactly as published rather than guess at it.
| Size | Face‑to‑face L | Bore d | Height H | Flange OD D |
|---|---|---|---|---|
| 1/2" | 51.6 | 13.7 | 89.5 | 63.1 |
| 3/4" | 56.8 | 18.3 | 96.8 | 63.1 |
| 1" | 60.2 | 24.2 | 108.9 | 70.6 |
| 1 1/4" | 70.2 | 25.3 | 120.6 | 70.6 |
| 1 1/2" | 73.1 | 31.6 | 132.9 | 96.5 |
| 2" | 84.2 | 44.5 | 153.4 | 98.3 |
- ⚠ Allow headroom above the height figure. This is a rising stem valve — the stem and handwheel travel up as it opens, and you need clearance above that plus room to turn the wheel.
- Measure the gap in the run against L, and on a replacement measure the valve coming out rather than trusting a drawing.
Test pressures
Factory proof tests. Not working pressures.
| Nominal Pressure | 200 PSI |
| Shell Test Pressure | 2.1 MPa |
| Seal Test | 1.6 MPa |
| Back Seal Test | 1.6 MPa |
| Gas-Tightness Test | 0.6 MPa |
| Max Working Pressure | -29&°;C to 150&°;C |
- ⚠ Do not design to these. They are proof tests well above the working rating — the body or shell test proves the casting or forging, the seal test proves the gate against its seat.
- Inspected and tested to API 598, the standard common to all ten gate valve variants, which is what makes these figures comparable across the range. All ten.
Not sure this is the right one?
End type first, then material, then pressure.
Choose this one when
- Your pipework is BSPP or NPT threaded — checked, not assumed.
- The duty suits Stainless steel A351 CF8 or CF8M cast.
- 200 PSI covers the working pressure.
- Your specification names ASME B16.34.
- You need to isolate, not regulate.
Choose something else when
- You need to throttle → globe valves. A gate valve will be damaged doing it.
- You need fast, frequent isolation → ball valves, a quarter turn instead of many.
- Your pipework is a different end type or flange standard → pick by end type.
- You need more pressure at small bore → the threaded or socket weld forged valves at 800 PSI.
- You need corrosion resistance → an SS316 variant.
- You need larger than 6" → butterfly valves.
All ten, side by side: the comparison table. Other variants: ANSI 150 cast iron · ANSI 150 cast steel · ANSI 150 forged steel · ANSI 150 SS316 · JIS 10K cast iron · JIS 10K SS316 · Threaded forged steel · Threaded SS316 800 PSI · Weld end forged steel.
Questions we get asked
The ones that come up on the phone.
What is the Threaded SS316, 200 PSI gate valve?
A rising‑stem gate valve for isolation duty with BSPP or NPT threaded ends, 1/2" to 2" (DN15 to DN50), in Stainless steel A351 CF8 or CF8M cast, rated 200 PSI. Designed and manufactured to ASME B16.34, ends to ANSI thread, inspected and tested to API 598. Tested at 2.1 MPa shell and 1.6 MPa seal.
Can I use it to control flow?
No. It is an isolation valve — fully open or fully shut. Held part‑open, flow across the partly‑raised gate makes it vibrate and erodes both the gate and its seat, and that damage is permanent: a throttled gate valve eventually will not shut off at all. To regulate flow use a globe valve.
What temperature will it take?
−29 °C to 150 °C. Gate valves reach this because they seat metal to metal and pack the stem with graphite — there is no PTFE in the pressure boundary. A PTFE‑seated ball valve stops at 150 °C. All ten compared.
Will it fit my pipework?
It is BSPP or NPT threaded, to ANSI thread. BSPP and NPT are not interchangeable — a mismatched pair engages, feels tight, then leaks later. If you are unsure which is on the existing pipework, send a photo before ordering.
What is it made of?
Stainless steel A351 CF8 or CF8M cast. The full numbered parts list is on this page, with the manufacturer’s own item numbers preserved so a spares order matches the drawing. Stainless throughout, so it suits corrosive fluids and wet or coastal environments.
Why is it rated 200 PSI?
Because it is a cast CF8/CF8M body built to ASME B16.34, not a forged one to API 602. That makes it the lightest and cheapest stainless threaded gate valve here — and the reason it is also the only one limited to 150 °C. The 800 PSI version is forged.
Do I need extra height above the valve?
Yes. This is a rising stem valve — the stem and handwheel travel up as it opens. Allow clearance above the published height plus room to turn the wheel. It is the dimension most often forgotten when replacing a valve in a tight space.
Gate valve or ball valve?
Temperature and speed decide it. Gate valves in this range work to 425 °C because they seal metal‑to‑metal with graphite packing; the PTFE‑seated ball valves stop at 150 °C. But a ball valve is a quarter turn and a gate valve is many turns. For hot service, gate. For fast or frequent isolation, ball.
What sizes do you hold in stock?
1/2" to 2" (DN15 to DN50), held in Malaysia or Singapore. Send the size and the end type and we will confirm availability and a landed price — transport, currency, duties and taxes already inside the figure.
